Z-Type Bucket Elevator Chains: Complete Selection Guide

Quick Summary: If you’re running a Z-type bucket elevator, you already know that the chain is the heartbeat of your entire system. Choose the wrong chain, and you’re looking at costly downtime. Pick the right one, and you’ll enjoy years of smooth, reliable operation. In this guide, we’ll walk you through everything you need to know about Z-type bucket elevator chains—from choosing the perfect chain for your application to keeping it running smoothly, plus insider tips on sourcing quality chains from China without the headaches.

Part 1: Let’s Start with the Basics

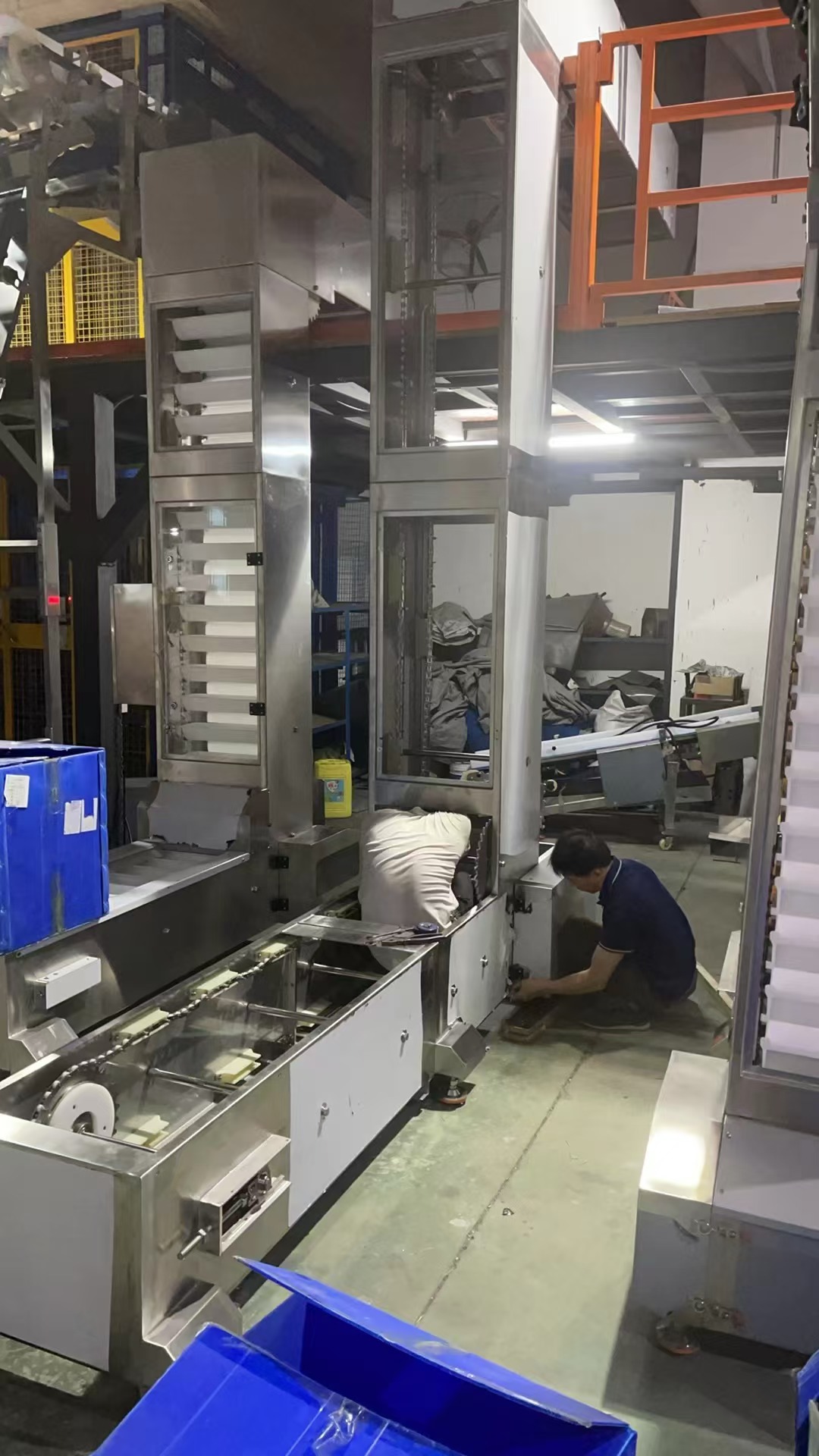

1. What Exactly is a Z-Type Bucket Elevator?

Think of a Z-type bucket elevator as a smart space-saver in your facility. Unlike traditional straight-up elevators, this clever machine moves materials in a Z-shaped path—horizontally, then vertically, then horizontally again. It’s perfect when you’re tight on floor space but need to move materials between different levels and locations.

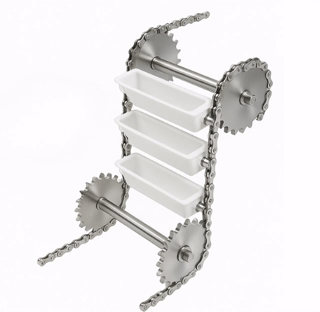

Here’s how it works: small buckets attached to a chain gently scoop up your materials at the bottom, carry them up and over, then tip them out at the discharge point. It’s especially great for handling delicate materials like grains, snacks, seeds, or powders that you don’t want to damage or create dust with.

2. Why Your Chain Matters More Than You Think

Let’s be honest—when your bucket elevator chain fails, everything stops. We’re talking hours or even days of downtime, lost production, and frustrated customers. The chain carries all the weight of your buckets and materials while cycling thousands of times a day. That’s why getting the right elevator chain isn’t just important—it’s critical to keeping your operation running smoothly.

💡 Tired of dealing with frequent chain failures? We’ve been manufacturing bucket elevator chains for over 30 years and supply to customers worldwide. [Talk to our technical team] for free selection advice and a no-obligation quote!

Part 2: Understanding Different Types of Bucket Elevator Chains

Not all conveyor chains are created equal. Let’s break down your options in plain English.

3. Chain Types by Structure

Chain Type	What Makes It Special	Best Used For
Double Pitch Roller Chain	Features oversized rollers that glide smoothly in guide tracks. This is the most popular choice for Z-type elevators. Think of it as the “standard” that most people use.	Light to medium-duty applications in food, chemical, and agricultural industries. Common models: C2052 chain, C2062H chain.
Forged Chain	Built like a tank—forged in one piece for maximum strength. Can handle serious abuse and heavy loads.	Heavy-duty applications with abrasive materials like cement, minerals, or clinker.
Round Link Chain	Simple welded rings. Flexible but not as precise or strong as roller chains.	Older, slower systems. Being phased out in modern Z-type bucket elevators.

4. Choosing the Right Material

The material you choose can make or break your chain’s lifespan. Here’s what you need to know:

Carbon Steel: Your go-to, budget-friendly option for dry, non-corrosive environments. Gets the job done without breaking the bank.
Alloy Steel: The upgraded version—stronger, tougher, and more wear-resistant. Worth the investment for demanding applications.

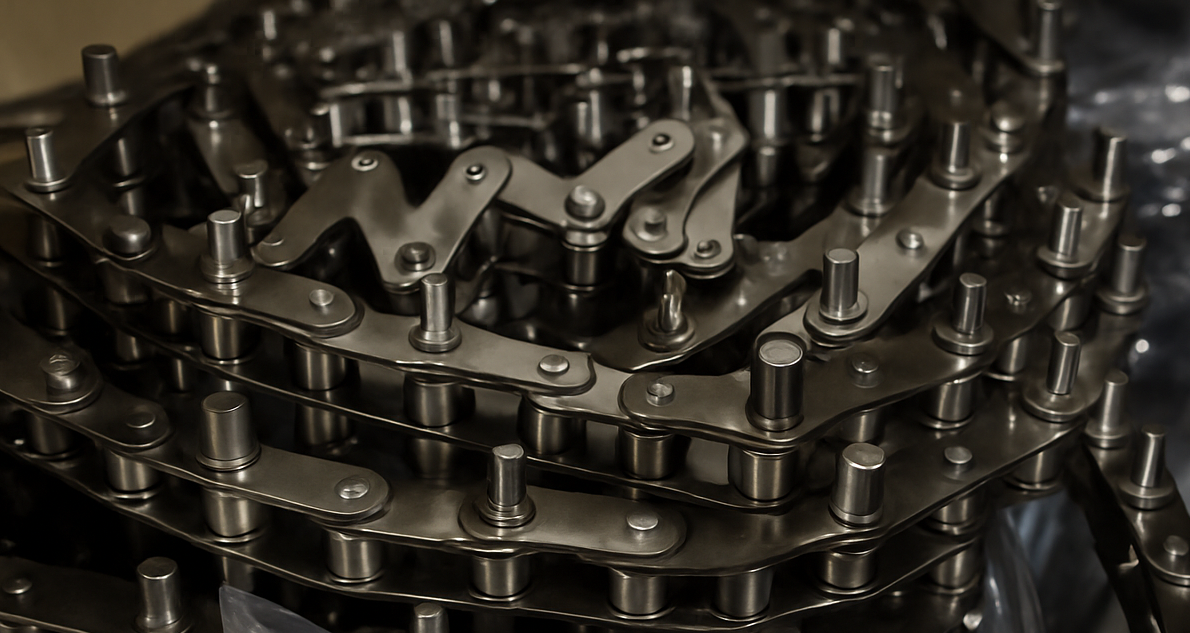

Stainless Steel (304/316): The premium choice for food processing, pharmaceuticals, or anywhere moisture and corrosion are concerns. Meets strict hygiene standards.
Surface Treatments: Add nickel plating, zinc coating, or heat treatment to boost your carbon steel chain’s rust resistance and surface hardness.

🎯 Not sure which material fits your needs? [chat with our engineers]—we’ll help you pick the right material based on your specific conditions.

Part 3: How to Choose the Right Chain (Without Overthinking It)

Selecting the right bucket elevator chain doesn’t have to be complicated. Follow these steps:

5. The 4-Step Selection Process

Calculate Your Load: Add up the weight of your materials, buckets, and factor in dynamic forces during start-up and stopping. Don’t forget a safety factor (typically 6-10x).
Assess Your Environment: Hot? Cold? Wet? Dusty? Corrosive? Your environment dictates your material choice and lubrication needs.
Know Your Material: Is it abrasive? Fragile? Sticky? This affects your conveying speed and bucket style, which in turn impacts your chain selection.
Match the Specs: Choose the right pitch, tensile strength, roller diameter, and plate thickness. Pro tip: Make sure your chain pair tolerance is tight (≤0.05%) so both chains run in perfect sync.

6.Common Mistakes to Avoid

Mistake #1: Focusing only on tensile strength. You also need to think about wear resistance, or your chain will stretch too fast and fail early.
Mistake #2: Forgetting about the sprockets. C2052 chains and similar oversized roller chains need special deep-groove sprockets. Using standard sprockets? That’s a recipe for rapid wear and skipping.
Mistake #3: Ignoring dynamic loads. Starting, stopping, and material impact create forces way beyond your static calculations. Always build in a safety margin.

📊 Need help calculating your chain load? [Fill out our online selection form]—just tell us your lift height, material type, and capacity. Our engineers will send you a professional recommendation and detailed quote within 24 hours.

Part 4: Keeping Your Chain Running Smoothly

Good maintenance can literally double your chain’s lifespan. Here’s what you need to know.

7. Getting Chain Tension Just Right

Think of chain tension like Goldilocks—not too tight, not too loose, but just right.

Too Tight: Wears out your chain, pins, bearings, and sprockets faster. Plus, it wastes energy.
Too Loose: Your chain bounces around, hits the casing, and can even jump off the sprockets.

Best Practice: Check and adjust your tension weekly. The loaded side should be taut, while the return side should have a slight, smooth sag.

8. Lubrication and Cleaning

Proper lubrication dramatically reduces wear between pins and bushings—the main cause of chain stretch. Choose the right lubricant for your environment, and keep your chain clean from material buildup to ensure the lube can do its job.

9. Troubleshooting Common Problems

Problem	What’s Causing It	How to Fix It
Chain Stretching	Poor lubrication, overloading, and abrasive wear.	Improve lubrication; check your load; consider more wear-resistant material.
Noise or Vibration	Wrong tension; worn sprockets; chains out of sync.	Adjust tension; replace worn sprockets; check chain pairing.
Chain Breaking	Severe overload; fatigue; corrosion.	Install overload protection; upgrade to a stronger chain; switch to corrosion-resistant material.

Important: When your chain stretches beyond 2-3% of its original length, replace the entire chain. Never replace just a section—mixing old and new links will accelerate wear.

🔧 Stuck with a chain problem you can’t solve? [Contact our technical support team] for remote diagnostics. We offer 24/7 support to get your production line back up fast!

Part 5: Your Guide to Smart Sourcing from China

China is the world’s largest chain manufacturing hub. Here’s how to source quality bucket elevator chains from China without the usual headaches.

10. How to Find a Reliable Chinese Supplier

Check Their Credentials: Look for ISO 9001 certification and membership in industry associations. We’re proud to be recognized as a National Enterprise Technology Center with over 30 years of experience and 80% domestic market share.
Inspect Their Capabilities: Ask for factory videos or visit in person. Check for automated production lines, heat treatment equipment, and testing facilities (tensile testers, hardness testers, spectrometers).
Verify Their Track Record: Review their market position, customer cases, and export experience in your region.

🏭 Want to see our production facility? [Schedule a virtual factory tour]—we’ll give you a live video walkthrough of our production lines, quality control center, and warehouse so you can see our capabilities firsth.

11. Quality Control Essentials

Test Samples First: Before placing a bulk order, test samples for dimensional accuracy, hardness, and tensile strength.
Specify Standards Clearly: Detail all critical parameters and tolerances in your contract (e.g., ANSI B29.1 standard, 21-pitch measurement method).
Request Documentation: Ask for material certificates, heat treatment reports, and factory test reports/videos with every shipment.

✅ Worried about quality? We offer [free sample testing]! Order a small batch to test in your actual application before committing to a large order. We can also provide third-party SGS inspection reports for your peace of mind. [Request your free sample now]

12. Avoiding Common Sourcing Pitfalls

The Price Trap: If a quote seems too good to be true, it probably is. Rock-bottom prices often mean compromises in material, heat treatment, or precision.
Specification Fraud: Beware of “non-standard” products. Verify that dimensions fully comply with your required standards (ANSI, DIN, etc.).
Communication Gaps: Work with suppliers who have professional export teams and technical engineers who can accurately understand and execute your requirements.

🌍 Concerned about language barriers? Our international trade team provides service in English, Spanish, Russian, and more. [Add us on WhatsApp0086-13536680274] or [email:info@fill-package.com]—we guarantee a response within 24 hours!

Part 6: Advanced Topics & Future Trends

Let’s talk about some topics that can add even more value to your operation.

Chain vs. Belt Elevators: Belt elevators are great for ultra-clean or quiet environments, but chain bucket elevators win hands-down for load capacity, durability, and high-temperature performance.
Innovation Alert: O-ring sealed chains permanently seal lubricant between pins and bushings, creating a maintenance-free solution that dramatically extends life—perfect for dusty environments or hard-to-reach installations.
Life Cycle Cost (LCC): Smart buyers don’t just look at purchase price. Consider operating costs (energy), maintenance costs, downtime losses, and expected lifespan. Choose the solution with the lowest total cost of ownership.

💰 Want to reduce your total cost of ownership? [Contact us] to learn how investing in quality chains saves you money in the long run.

Conclusion & Next Steps

Your Z-type bucket elevator chain might be small, but it plays a huge role in keeping your production line running smoothly. By understanding the different types, following smart selection practices, maintaining properly, and sourcing wisely, you’ll ensure reliable operation and real cost savings for your business.

Why Choose Us as Your Chain Partner?

✓ 30+ years of industry expertise, National Enterprise Technology Center certified
✓ 80% domestic market share, products exported worldwide
✓ Strict quality control, test reports provided with every batch
✓ Lightning-fast delivery, 24-hour response time
✓ Full technical support, from selection to after-sales service

📞 Get in Touch

•Phone/WhatsApp: 0086-13536680274

•Email: info@fill-package.com

•Website: www.fill-package.com

Don’t let chain problems slow down your production! Contact us today and let our experienced team provide you with the perfect solution.
