Multihead Weigher Combination Weigher with Screw Feeder

Multihead Weigher & Combination Weigher Solutions

At Fill Package, we deliver more than just a machine; we provide a complete weighing solution. Our advanced multihead weigher systems, also known as combination weighers, are engineered for the highest accuracy and efficiency, transforming your packaging line. Whether you are handling free-flowing grains or challenging sticky products, our weighers ensure every package meets your exact specifications.

What is a Multihead Weigher?

A multihead weigher is a high-precision weighing machine that uses multiple weigh heads to achieve a target weight with exceptional accuracy. The process begins when the bulk product is fed to the top of the weigher. A distribution system then evenly disperses the product to a series of vibratory feeder pans, which in turn transport it to individual weigh buckets. Each bucket’s content is weighed by a dedicated load cell. The weigher’s computer then calculates the optimal combination of buckets to achieve the precise target weight, minimizing giveaway and maximizing yield. This is why it is also commonly referred to as a combination weigher.

Not Just a Weigher, But a Solution for the Hardest Products

Some materials don’t flow—and that’s where our expertise shines. While a standard weigher might struggle, Fill Package specializes in designing customized multihead weighers, particularly those with screw feeders, that masterfully handle sticky, wet, fragile, or clumping products. From marinated meats and fresh produce to delicate snacks and powders, our multi-weigher systems are built for the challenge.
If you’ve tried standard combination weighers and failed, this is the system built for what others can’t handle.

Screw Feeder Multihead Weighers

We sale more than 5000sets  screw feeder Multihead weigher  still now ,Our screw feeding machine has the most styles and the most stable performance. Every part of our screw feeding multihead weigher is engineered to match your product—not a catalog spec sheet. This is a made-to-fit weighing machine built around your material’s behavior.

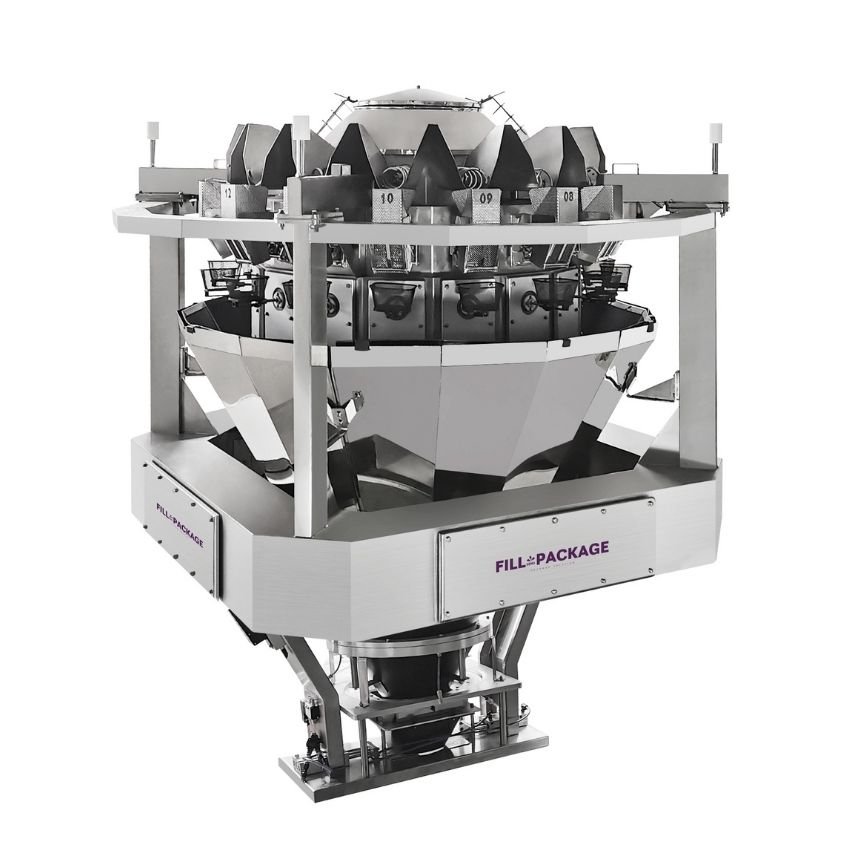

Extremely Sticky screw feeding weigher

“Patented Rolling Cup” design for weighing hopper, prevent materials sticky on it .Teflon chute with pneumatic door opening, which improve accuracy.

screw feeding weigher

Screw feeding multihead weigher package machine  .can handle many kinds of sticky material,such like fresh meat .fish.chicken breast.

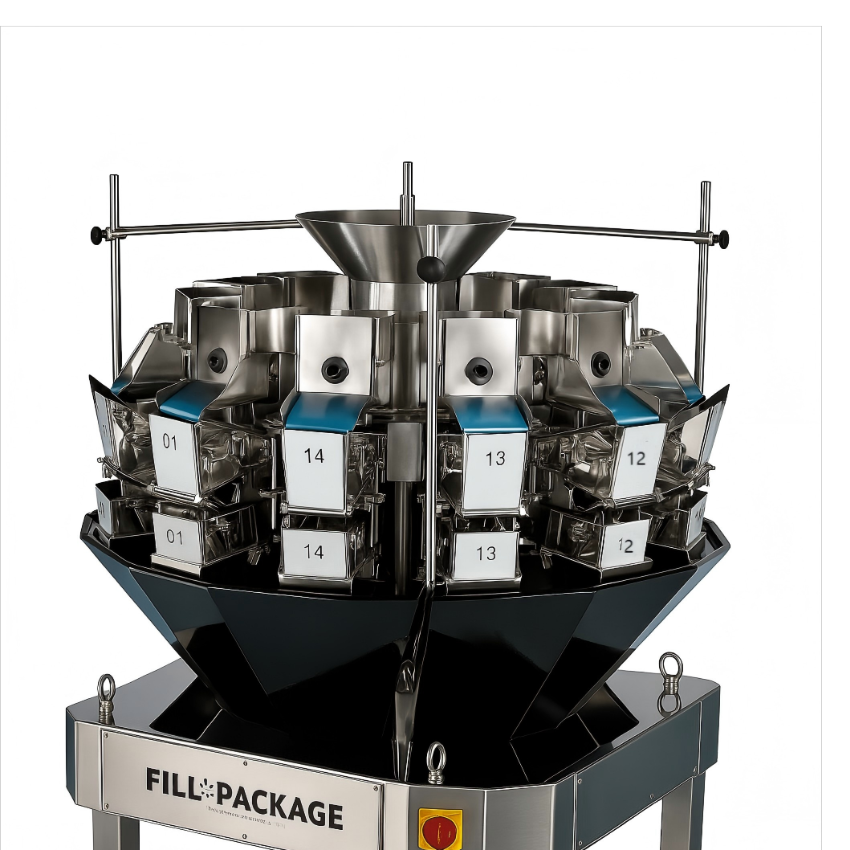

Belt Feeder Weigher

Sticky or fragile products: Perfect for handling sticky, fragile, or irregular-shaped products that require smooth, gentle, and controlled feeding without vibration or damage.

What Makes Our Multi Weigher Systems Different?

low cost
Custom Feeding Systems

Our systems feature main vibration pans powered by custom screw conveyors and linear feeder screws tailored in pitch, diameter, and quantity to handle your product’s unique characteristics.

low maintenane cost
Advanced Hopper Opening Systems

Choose from single-door, dual-door, or our signature scraper-style double gates to prevent buildup and ensure a full, clean discharge every time.

Versatility
Specialized Surface Treatments

Contact parts are available in flat, small dimple, or honeycomb dimple designs. We also offer Teflon-coated surfaces for superior anti-stick performance.

easy
Adjustable Discharge Chutes

We tailor the chute angle, length, and design (with optional vibration or liners) for a soft drop into trays, bags, or thermoform cavities, protecting product integrity.

Multihead Weigher Working Principle

A multi head weigher, also referred to as a multi weigher or combination weigher, is a high-speed, precision weighing machine widely used for automated packaging processes. Among various types, the screw feeder multihead weigher is uniquely designed to handle sticky, fine, or hard-to-move products—while still using the same core weighing principle as traditional combination weighers.

Shared Working Principle Across All Multi Weighers

Regardless of whether it’s a standard vibratory multihead weigher or a screw feeder type, the fundamental principle remains consistent:

  1. Product Feeding
    Products are delivered into multiple weigh heads.

    • Traditional multi weighers use vibratory feeders (main vibration pans and linear feeders) to move dry, free-flowing products.

    • The screw feeder multihead weigher, in contrast, uses rotating screw shafts to push the product forward—making it ideal for materials that do not flow well, such as sticky powders, pastes, or moist food.

  2. Independent Weighing
    Each head of the combination weigher measures a small amount of product independently. These individual weights are sent to the central processor.

  3. Combination Calculation
    The system then calculates the best combination of heads whose total weight is closest to the target. This combination weighing method ensures minimal giveaway and consistent accuracy.

  4. Discharge
    The selected combination of weigh buckets opens simultaneously to discharge the product into the next stage—typically a packaging machine.

Key Difference: Feeding Mechanism

While the combination weighing principle is the same across all multi head weighers, their feeding systems differ:

  • The standard combination weigher relies on vibration to move material into the weigh buckets.

  • The screw feeder combination weigher replaces vibratory feeding with screw-driven feeding, offering greater control over flow rate—especially for delicate, sticky, or semi-liquid products.

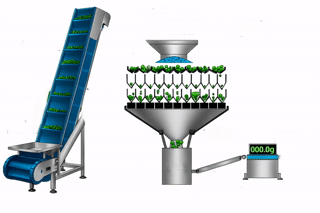

Multihead weigher working principle

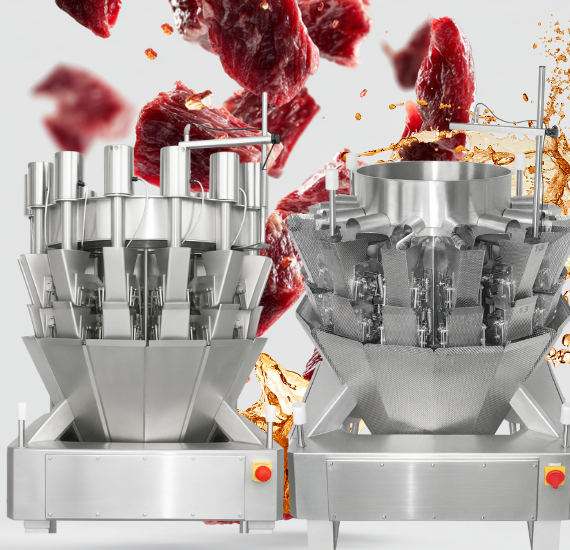

Screw Feeder Multi Head Weigher Specifications

Our combination weighers are built with performance and durability in mind, using high-quality materials and components.

Feature
Specification
Material
Stainless steel 304
Bucket Size Options
0.5L, 0.8L, 1.6L, 2.5L, and 5.5L
Head Configurations
10, 11, 14, 20, 24 Heads
Waterproof Rating
IP63/IP65 optional
Weighing Accuracy
±0.3g to 1g (dependent on material)
Control Display
10.1-inch color touchscreen
Power Supply
220v/110v, 50Hz or 60Hz option
Preset Programs
Up to 100 product presets
Packaging
Secure wooden box for shipping



Why Choose Fill Package for Your Weighing Needs?

10+ Years of Expertise: We have over a decade of experience building customized weighing systems.
Tailored Solutions: We provide 1:1 matching of feeding screws, hopper gates, and chute angles to your product.
Open Maintenance: We believe in empowering our clients, not trapping them with expensive proprietary spare parts.
OEM & Integration Support: OEM branding and detailed integration drawings are available.
Global Support: Our team offers an 8-hour response time with a 24-hour resolution goal.

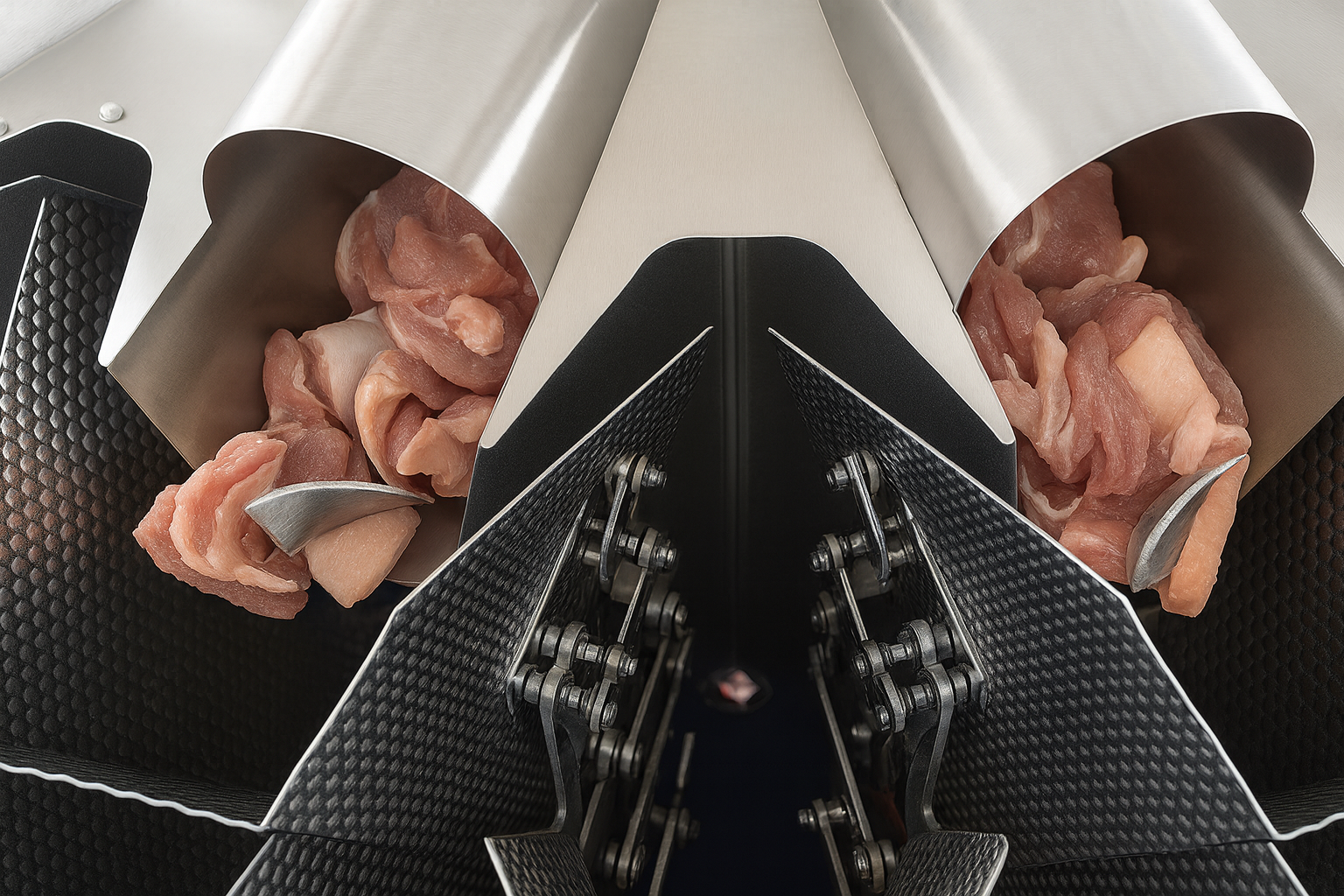

screw feeder weigher
Srew feeder multihead weigher

Combination Weigher Applications

Our multi head weigher technology is trusted across a wide range of industries for its reliability and precision.
Product Type
Target Weight
Typical Accuracy
Speed (packs/min)
Cooked Meat Cubes
250g
±1.5g
40–50
Shredded Cheese
100g
±1.0g
50–60
Fresh Meat
300g
±2.0g
45–55
Protein Powder
500g
±3.0g
35–45
Wet Pasta
200g
±1.8g
40–50

Fill&Package Multihead Weighers Advantage

our advantage

The design and manufacture of mechanical parts can be customized according to the physical characteristics, chemical properties, shape, size and other factors of different materials. For example: powdery products need a leak-proof hopper, fragile products need a low chute and add rubber pads on the products contact surface ,large-volume salads need a heightened buffer hopper etc.

our advantage 2

Our program can make necessary changes and customized settings according to your needs under the existing software.For example: improve the user interface, add or delete functions or modules, improving the performance and security, and so on. We are committed to providing high-quality services to ensure our customers get the best user experience.

  • “We mainly produce nostalgic halal spicy strips. For this type of product, achieving automation is really challenging. What surprised us was that with domestic machinery, we were able to solve the problem of labor intensity with excellent cost performance.”

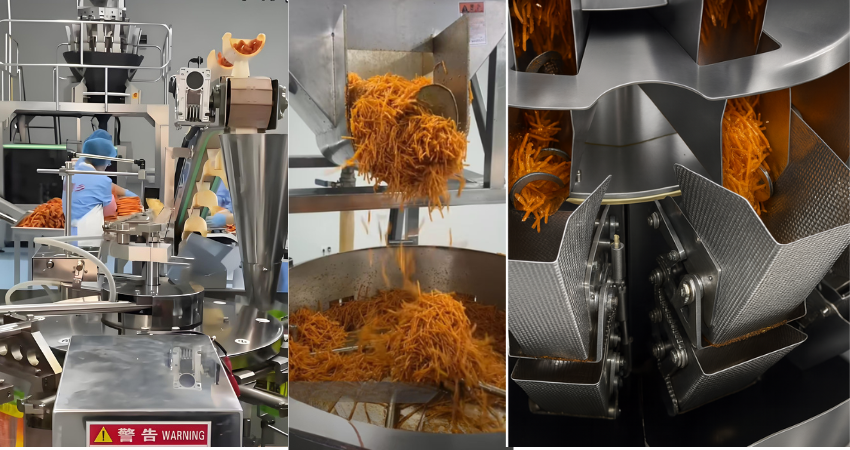

    Sticky Products Package systerm

    Zhang,Production Manager of Layi Bu Halal Spicy Strips
  • “This packaging system perfectly solves the production capacity problem for small-volume viscous foods. The after-sales service provided by the manufacturer is truly outstanding.”

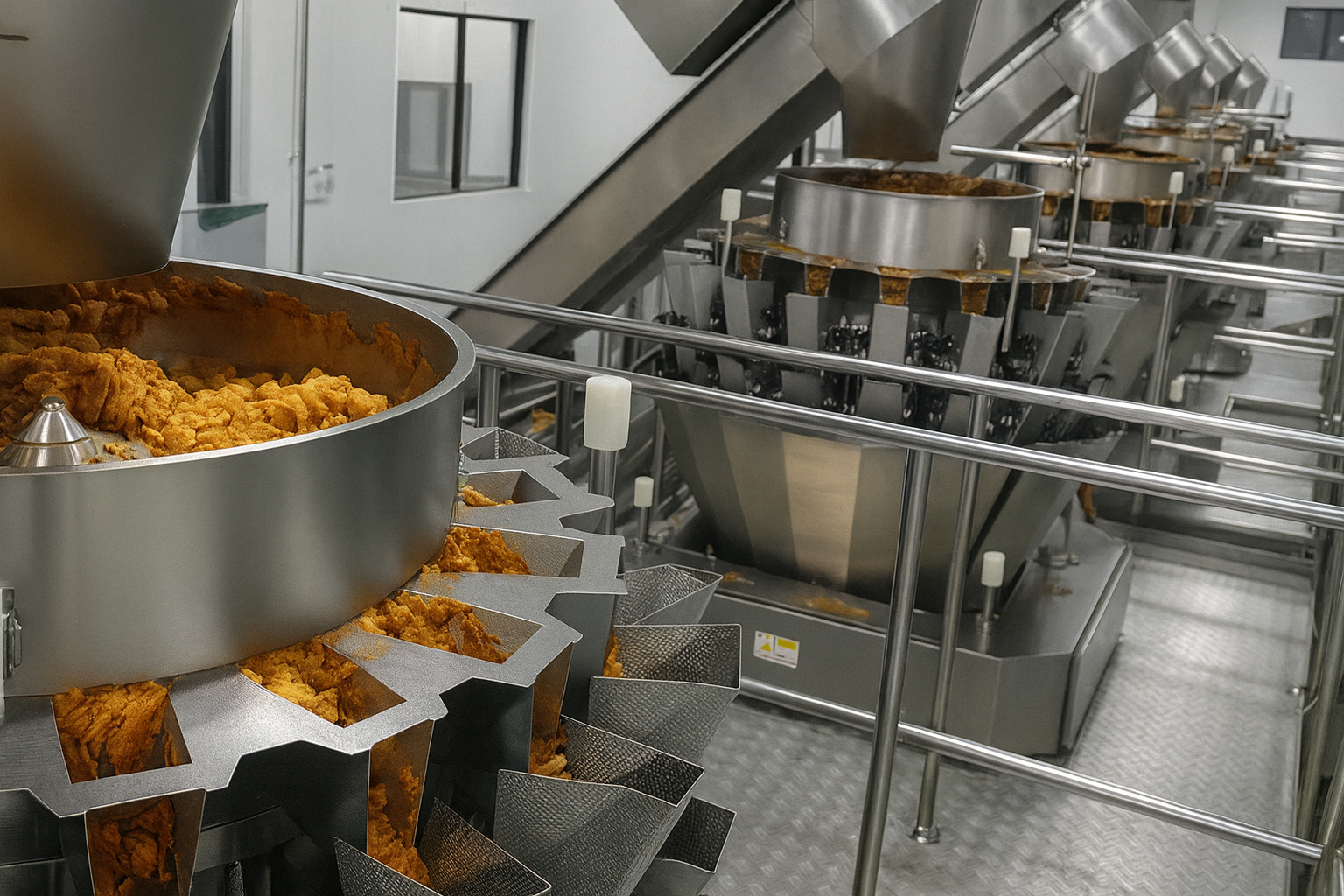

    Sticky Products Package systerms



    — LISHI Production Director, Wenlong
  • The production capacity has been greatly improved ,the maintenance is also convenient. In general, Good Machines

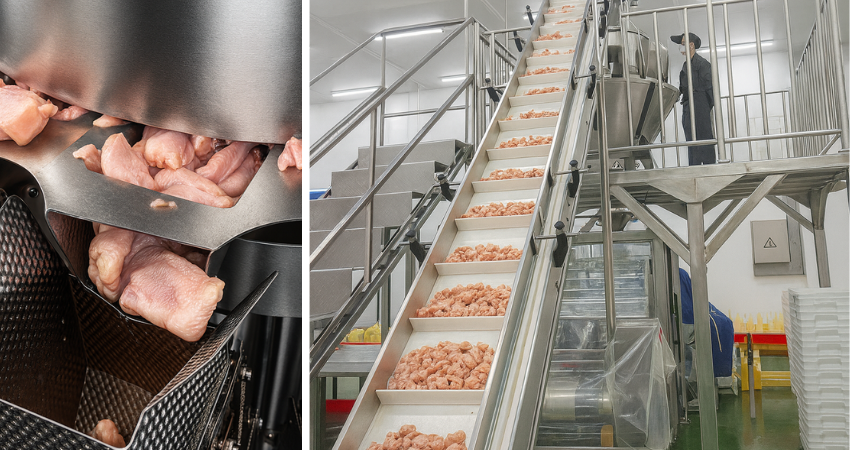

    Meat Package Machines

    Guoxi, at Zhengda

Let’s Be Honest…

This isn’t a standard machine. This is a solution—built for the 10% of products everyone else avoids. And that’s why our clients stay with us.
Ready to get a quote for your custom combination weigher?
Send Your Inquiry Today
What is the difference between a multihead weigher and a combination weigher?

  There is no difference. The terms “multihead weigher” and “combination weigher” are used interchangeably. They both refer to a weighing machine that uses a combination of multiple weigh heads to calculate a precise weigh
Can this weigher handle sticky products like marinated meat?

 Absolutely. Our screw feeder model is specifically designed for such applications. We customize the screw and test your actual material to ensure smooth, consistent feeding.

Can your multi weigher system handle multiple product recipes?

Yes. Our systems can store up to 100 preset programs, allowing you to switch between different product recipes quickly and easily from the control panel

What about maintenance and spare parts?

Our design is simple, stable, and low-cost to maintain.
We don’t force expensive spare parts sales.
And unlike others, our PCB boards are backward-compatible, meaning no chaos managing different versions. You only need 1–2 backup boards—not a pile of SKU-matched chips.

What if it fails later?

We offer real remote support—you’ll get help even during testing, not just post-sale.
We guide you via video, parameter setup, and fault checks. If needed, we’ll repair your board rather than upsell a new one.

How often does a combination scale need to be calibrated?

The frequency of calibration of combinatin scale depends on many factors, such as the accuracy of scale and accuracy your need, the environment and frequency of use, etc. In general, it is recommended that calibration scale be calibrated at least once a week. The weight of the calibration scale used also varies depending on the weighing need. The commonly used weight is 1KG. But for higher precision requirements ,calibration weighers of 100g or 300g should be used .

In addition, if you find that target weigh is different to your expectations when you use the combination scale, you should also calibrate it as soon as possible, and check whether the weighing hopper is operating normally and whether there is any material jam.

Where is the combination scale usually placed on the package line ?

Combination scales are usually placed at the end of the production system to weigh and package the products that have been produced. It is usually placed above the weighing system or packaging system, that is, above the conveyor belt, vibrating feeder and packaging machine. At the same time, Generally, in order to ensure its stability, it will be installed on a solid working platform to avoid shaking and swaying from affecting its accuracy. In addition, in order to have better accuracy, avoid the influence of environments, such as wind and other equipment intervention .

What happens when the combination scale detects an unsatisfactory weight?

When an unsatisfactory weight is detected, the scale will display an error message . This is to let the operator find the error in time, and immediately take out the incorrectly weighed material, so that the scale can continue to operate normally.

Add a collection hopper on the scale body can make this process automatic. It will be automatically discharged unqualified products from the other side of the collecting hopper,  there is no need for the operator to solve it.

At the same time, frequent overweight will cause damage to load cell, and may lead to repair or replacement of load cell, so you should read the manual carefully before running the weighers . communicate with us in time if you have any problems during use.

What's load cell ?

Load cells are one of the most important components in combination scales. They are used to measure the weight or force of an object. They work on the principle that when an object is subjected to an external force, the material inside the object undergoes deformation, which converts the weight or force of the object into an electrical signal. By measuring these electrical signals, the weight or force of the object can be determined.

load cell

A load cell is a precision measuring parts that requires regular maintenance to maintain its accuracy and reliability, and to protect against shock ,vibration and overload



What's need attention when run machine ?

1.”Clean ” &”Zero ” all the buckets very times when start machines

2.Don’t push a large pressure on weigh buckets and load cell

3.Do switch offf the power supply when maintaining or cleaing machine .

4.Make sure machines fastern and stable .
