How Do Vertical Form Fill Seal Machines Work? Fill Package

In the modern packaging world, efficiency, speed, and reliability are paramount. Across numerous industries, from food and beverage to pharmaceuticals, manufacturers must package products quickly and consistently. One of the most important technologies enabling this is the Vertical Form Fill Seal (VFFS) machine. These powerful systems automate the entire process of creating, filling, and sealing bags. As a result, they have become an indispensable asset for manufacturers worldwide.

This guide provides a comprehensive exploration of how Vertical Form Fill Seal machines operate. Throughout this article, we will deconstruct the entire process, from the initial unwinding of the packaging film to the final discharge of a shelf-ready product. By examining each component and every step of the operational sequence, you will gain a deep understanding of the engineering and precision that make VFFS technology essential. Whether you are a business owner considering an investment in packaging automation, an engineer seeking to deepen your technical knowledge, or a procurement manager evaluating production solutions, this article will equip you with the essential insights you need.

Understanding VFFS Machines: An Overview

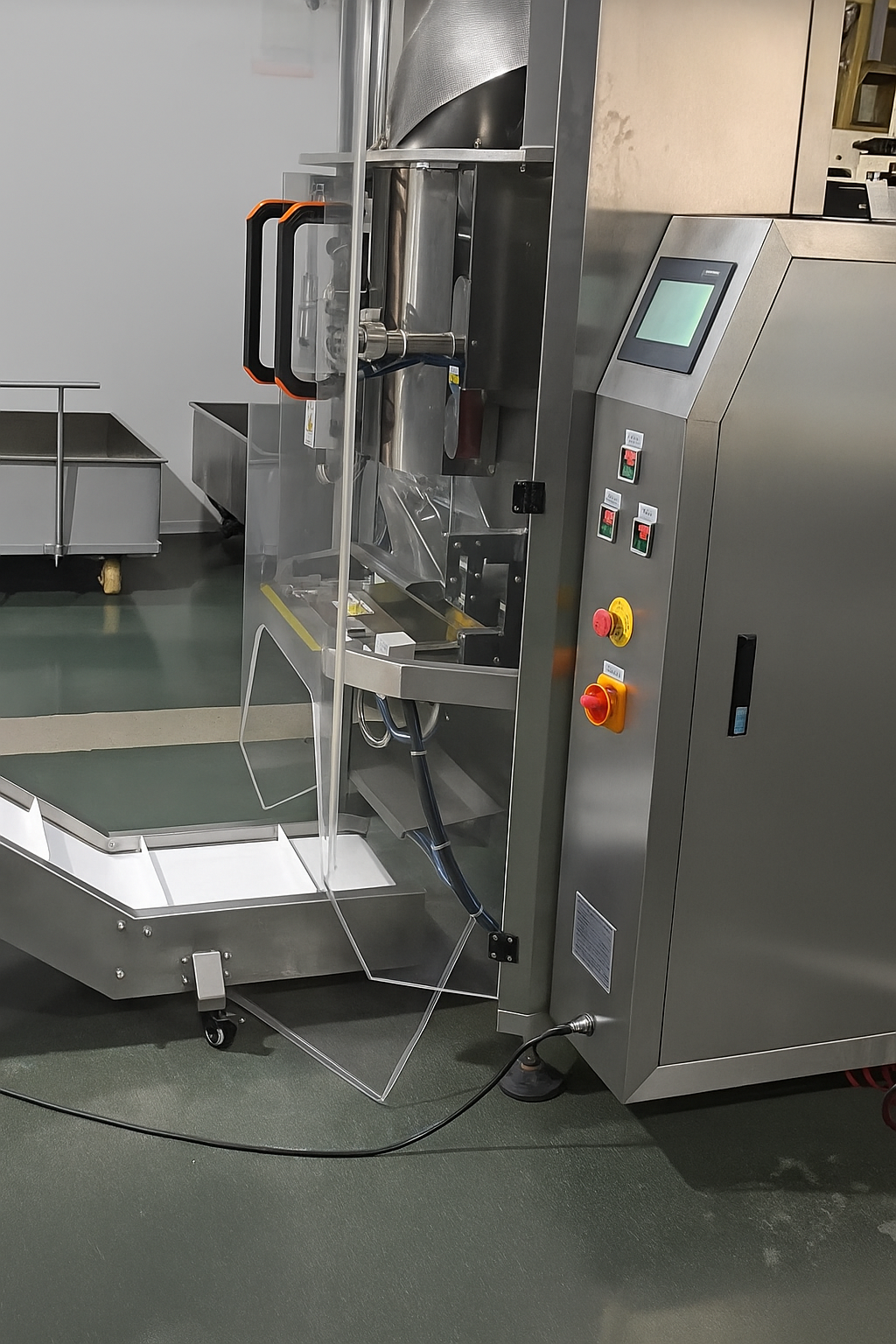

What is a VFFS Machine?

At its core, a Vertical Form Fill Seal (VFFS) machine is an automated packaging system that performs three primary functions in a vertical sequence. First, it forms a bag from a flat roll of packaging material. Next, it fills the bag with a predetermined quantity of product. Finally, it seals the bag securely. The vertical orientation is a key design feature. Consequently, the machine can utilize gravity during the filling process and maintain a compact footprint on the factory floor. This is a significant advantage in facilities where space is at a premium.

Speed and Versatility

VFFS technology is renowned for its remarkable speed and efficiency. In fact, some models can produce over 300 bags per minute [2]. This high-speed capability, combined with the cost-effectiveness of using rollstock film instead of pre-made bags, makes VFFS machines highly economical for high-volume production. Moreover, their versatility is another significant advantage. Manufacturers can configure these machines to handle a vast range of product types—including powders, granules, liquids, and solids. Additionally, they can produce a variety of bag styles, from simple pillow pouches to more complex gusseted or block-bottom bags.

Key Components of a VFFS Machine

To fully appreciate how a VFFS machine operates, understanding its core components is essential. Each part plays a critical role in the seamless and automated packaging process. While specific designs may vary between manufacturers, the fundamental components remain consistent across most VFFS systems.

Component	Function
Film Transport System	Unwinds the packaging film from the roll (rollstock) and feeds it into the machine. It ensures the film moves smoothly and at the correct speed.
Dancer Arm	A weighted, pivoting arm with rollers that maintains consistent tension on the film as it unwinds. This prevents the film from wrinkling or wandering, ensuring proper alignment throughout the process [2].
Registration & Tracking Systems	Ensure precise positioning of the film. A photo-eye detects printed registration marks to control the cutting sequence, while sensors monitor the film’s edge to make automatic adjustments and maintain alignment.
Forming Tube & Collar	Shapes the bag. The flat film is drawn over the shoulder (collar) of the forming tube, which folds it into a vertical tube. The diameter of the forming tube determines the width of the bag.
Vertical Sealing Bar	A heated bar that presses against the overlapping vertical edges of the film tube, creating the longitudinal seal of the bag.
Horizontal Sealing Jaws	A pair of heated jaws that perform two functions simultaneously: they create the top seal of the filled bag below and the bottom seal of the next bag to be filled.
Cutting System	A knife integrated within the horizontal sealing jaws that separates the completed bag from the film tube.
Filling Apparatus	An external device integrated with the VFFS machine to dispense the product. Common types include multi-head weighers, auger fillers, and volumetric cup fillers, each suited for different product types [3].
Control System (PLC/HMI)	The brain of the machine. A Programmable Logic Controller (PLC) coordinates the actions of all components, while a Human-Machine Interface (HMI), often a touchscreen, allows operators to set parameters, monitor production, and diagnose issues.

The VFFS Process: A Step-by-Step Guide

The operation of a Vertical Form Fill Seal machine is a highly synchronized sequence of events. Below is a detailed breakdown of the entire process, from a flat roll of film to a finished, sealed package.

Step 1: Film Unwinding and Transport

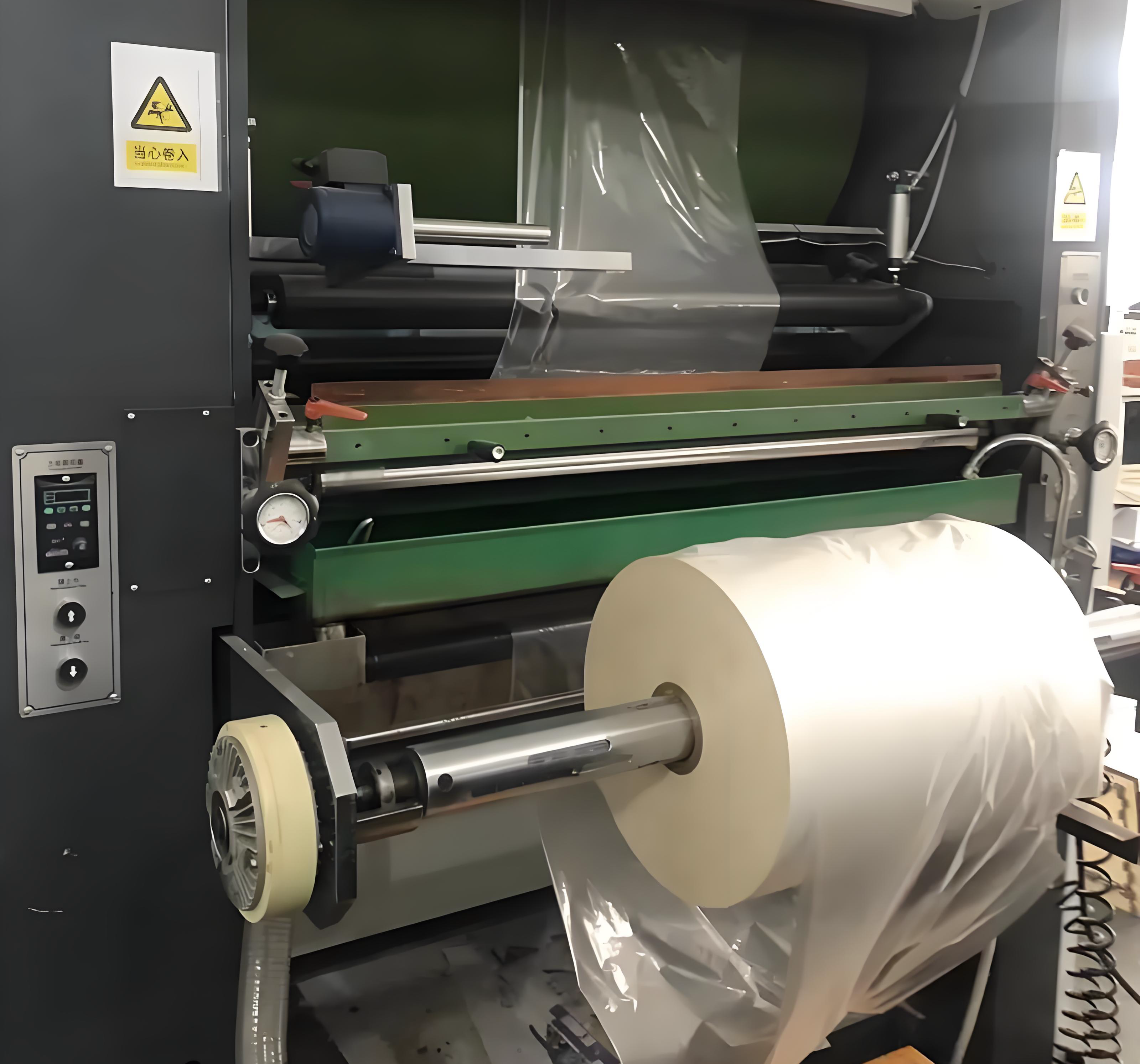

The process begins at the rear of the machine. Here, operators mount a large roll of packaging film, known as rollstock, on a spindle assembly. Transport belts then pull the film off the roll. These belts are a key part of the film transport system. For heavier film rolls, an optional power unwind wheel may assist in feeding the film smoothly. This prevents any sudden jerks or inconsistencies in the film supply.

Step 2: Film Tension Control

As the film unwinds, it passes over a dancer arm. Engineers design this weighted, pivoting arm to move up and down. As a result, it maintains constant tension on the film. This tension is crucial for preventing the film from wandering from side to side or developing wrinkles. Such issues could lead to defective bags and interruptions in production. Therefore, the dancer arm ensures the film remains perfectly flat and aligned as it moves toward the forming area .

Step 3: Optional Printing

If the packaging design requires information such as date codes, batch numbers, logos, or other graphics, the film passes through a printing unit after the dancer arm. Depending on the application, this can be a thermal transfer printer or an ink-jet printer. Consequently, this step allows manufacturers to print variable data on the film before forming the bag .

Step 4: Film Tracking and Registration

Next, the film travels past a registration photo-eye and film tracking sensors. The photo-eye detects printed registration marks on the film. This allows the machine’s control system to precisely coordinate the film’s movement. As a result, the cutting knife separates the bags at the correct position. Simultaneously, edge sensors monitor the lateral position of the film. If the film starts to drift, the entire transport carriage assembly automatically shifts. This brings it back into perfect alignment, ensuring consistency from one bag to the next .

Step 5: Bag Formation

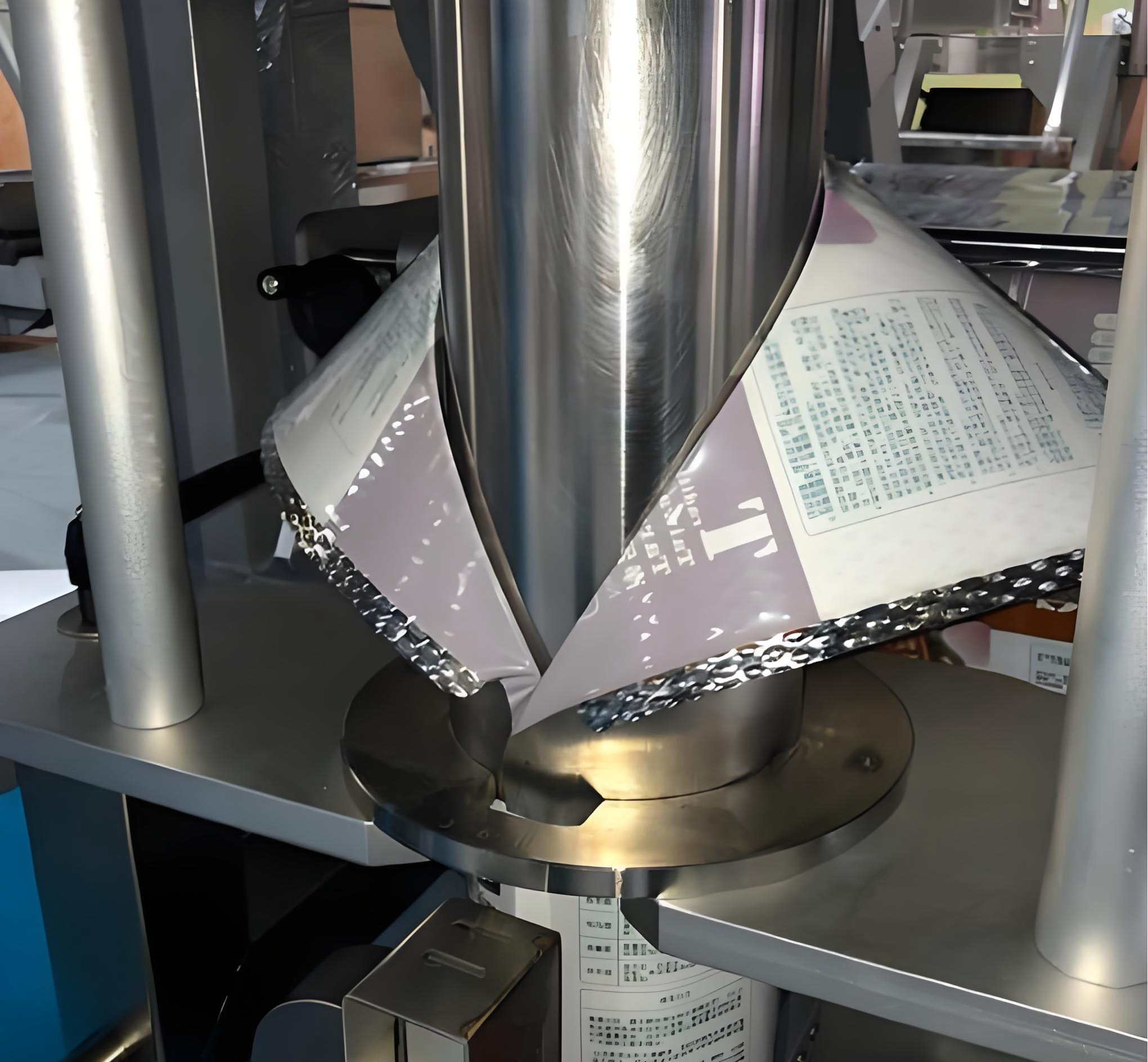

This is where the two-dimensional film transforms into a three-dimensional bag. The film is drawn over the shoulder (or collar) of a forming tube. This action folds the flat film around the tube, creating a continuous tube of film with the two outer edges overlapping. At this stage, the machine also determines the bag’s length. Operators set this parameter via the HMI. A rotary encoder, which is in contact with the film, measures the length of film that passes by. Once the desired length is reached, it signals the film transport to stop .

Step 6: Product Filling and Sealing

Once the film tube forms and is held in place, the heated vertical sealing bar moves forward. It presses the overlapping edges of the film against the forming tube, creating the vertical seal. Immediately after, a pair of heated horizontal sealing jaws come together. They create the top seal of the bag below and the bottom seal of the next bag above. While these jaws remain closed, the integrated filling apparatus—such as a multi-head weigher or auger filler—dispenses a precise amount of product. The product then falls under gravity down through the forming tube and into the waiting bag .

Step 7: Cutting and Discharge

After the product fills the bag, a sharp knife moves forward. Typically housed within the horizontal sealing jaw assembly, it cuts the completed bag, separating it from the film tube. The jaws then open, and the machine discharges the finished, sealed bag. Usually, it moves onto a conveyor or into a collection bin. This completes a single cycle. Immediately, the machine begins the next one, repeating the process at a rapid pace .

Types of Seal Configurations

Understanding Seal Types

The vertical seal is a critical element of the bag’s construction. VFFS machines typically create one of two primary types: the lap seal or the fin seal. The choice between them depends on the packaging film and the desired aesthetic for the final product.

Lap Seal

In a lap seal, manufacturers overlap the two outer edges of the film. They create the seal by bonding the inner layer of one edge to the outer layer of the other. This creates a flat, seamless-looking seal on the back of the bag. A key advantage of the lap seal is its efficiency. It uses less material per bag compared to a fin seal. However, it is only suitable for films where the inner and outer layers can bond together .

Fin Seal

Manufacturers create a fin seal by bringing the two inner surfaces of the film’s edges together and sealing them. This creates a seal that protrudes from the back of the bag, resembling a fin. While it uses slightly more material, the fin seal is necessary for films with special barrier layers or coatings. These prevent the inner and outer surfaces from sealing to each other. Therefore, it ensures a strong, reliable seal by bonding the two compatible inner layers .

Filling Systems for VFFS Machines

Choosing the Right Filling System

The filling apparatus is a critical component that works in conjunction with the VFFS machine. It ensures the correct amount of product dispenses into each bag. The choice of filling system depends on the product’s characteristics. These include its consistency, flowability, and required fill accuracy. Below are the most common types of filling systems.

Volumetric Cup Fillers

Volumetric cup fillers are ideal for free-flowing, granular products like rice, sugar, or seeds. This system uses a series of adjustable cups to measure the product by volume. While simple and cost-effective, it may offer less accuracy for products with inconsistent densities .

Auger Fillers

Engineers design auger fillers for powders and granular products such as flour, spices, or coffee grounds. An auger filler uses a rotating screw to dispense a precise amount of product. It offers high accuracy and is versatile enough to handle a wide range of product densities .

Piston Fillers

Piston fillers are the preferred choice for liquids and semi-liquid products like sauces, creams, or gels. A piston filler uses a piston to draw in and then dispense a precise volume of product. Consequently, it can handle a wide range of viscosities with high accuracy .

Combination Weighers (Multi-Head Weighers)

Combination weighers are best suited for products with inconsistent weights and shapes. Examples include snack foods, candy, or frozen items. A combination weigher uses multiple weighing heads to calculate the perfect combination of products to achieve the target weight. As a result, it offers exceptional accuracy at high speeds.

Types of VFFS Machines

Machine Categories

Manufacturers can broadly categorize VFFS machines based on their operational motion and drive systems. Understanding these differences is crucial for selecting the right machine for a specific application. Ultimately, it directly impacts production speed, accuracy, and cost.

Intermittent Motion vs. Continuous Motion

The primary distinction in VFFS machine operation lies in how the machine handles the film during the sealing process.

Intermittent Motion Machines: In this design, the film transport stops momentarily for the horizontal sealing and cutting process to occur. This stop-and-start motion is simpler mechanically. However, it limits the overall speed of the machine. Intermittent motion machines are well-suited for applications where high speed is not the primary requirement. They also work well for products that need more time to settle in the bag before sealing.

Continuous Motion Machines: As the name implies, the film moves continuously without stopping. Engineers design the horizontal sealing jaws to move along with the film as they seal and cut. This allows for significantly higher production speeds. Therefore, these machines are ideal for high-volume operations where maximizing throughput is a key objective.

Pneumatic vs. Servo-Driven Systems

The drive system that powers the machine’s moving parts, particularly the sealing jaws, is another critical differentiator.

Pneumatic VFFS Machines: These machines use compressed air to actuate the sealing and cutting mechanisms. Pneumatic systems are known for their reliability, simpler design, and lower initial cost. This makes them an accessible option for many businesses. However, they generally offer less precise control over motion. Additionally, they operate at lower speeds compared to servo-driven systems. They also tend to have higher energy consumption due to the need for a constant supply of compressed air .

Servo-Driven VFFS Machines: These advanced machines use electric servo motors to control the movement of their components. Servo motors provide exceptionally precise control over position, speed, and torque. As a result, they deliver higher accuracy, faster production speeds, and greater flexibility in handling different packaging materials and formats. While they have a higher initial investment cost, servo-driven machines are more energy-efficient. Furthermore, they offer superior performance for demanding, high-volume applications .

Packaging Materials and Film Types

Film Selection Matters

The versatility of VFFS machines extends to the wide variety of packaging materials they can handle. The film, or rollstock, is the foundation of the final package. Its properties are crucial for product protection, shelf life, and branding. These materials range from simple single-layer films to complex multi-layer laminates.

Common Film Materials

Manufacturers commonly use the following materials in VFFS applications:

Polyethylene (PE): A common and flexible plastic used for a wide range of products.

Laminates: Multi-layer films that combine materials like polyester (PET), polypropylene (PP), and aluminum foil. These provide enhanced barrier properties against moisture, oxygen, and light. Manufacturers often use these for food products to ensure freshness .

Paper Laminates: These offer a more natural look and feel. Manufacturers often use them for organic or artisanal products.

Special Film Features

In addition to the base material, manufacturers can produce films with special features. These enhance consumer convenience and product functionality. Examples include resealable zippers, one-way gas release valves (essential for products like fresh coffee that release CO2), and pre-applied tear notches for easy opening [1]. Therefore, selecting the right film is a critical decision. It impacts everything from production efficiency to the end-user experience.

Industries and Applications

Wide-Ranging Applications

The adaptability and efficiency of VFFS machines have led to their widespread adoption across diverse industries. Their ability to handle various products and create customized packaging solutions makes them invaluable for:

Food and Beverage: This is the largest sector for VFFS applications. From snacks like potato chips and nuts to powders like flour and spices, and even liquids like sauces and dressings, VFFS machines package a vast array of food products .
Coffee: The coffee industry relies heavily on VFFS machines to create airtight bags. Often equipped with one-way valves, these preserve the freshness and aroma of roasted beans and ground coffee .
Pet Food: VFFS machines package everything from dry kibble and treats to supplements. They accommodate a wide range of bag sizes and materials required for the pet food market .
Pharmaceuticals and Medical: For packaging powders, granules, and small medical devices, the precision and sterile capabilities of VFFS machines are essential.
Consumer Packaged Goods: Products like detergents, small hardware items, and other household goods are frequently packaged using VFFS technology.
Agriculture: Seeds, fertilizers, and other granular agricultural products benefit from efficient packaging using robust VFFS systems.

Advantages of VFFS Technology

Key Benefits

The widespread use of Vertical Form Fill Seal machines is a testament to their numerous advantages over other packaging methods. For businesses looking to automate and scale their operations, the benefits are compelling.

High-Speed Production: With the ability to produce anywhere from 30 to over 300 bags per minute, VFFS machines offer significant throughput. This dramatically increases production capacity.
Cost Efficiency: By forming bags from rollstock, VFFS machines significantly reduce the cost per package compared to using pre-made pouches. This leads to substantial savings in material costs over time.
Space-Saving Design: The vertical orientation of VFFS machines gives them a much smaller footprint than their horizontal counterparts. Consequently, they conserve valuable floor space in a production facility.
Flexibility and Versatility: Operators can quickly adjust VFFS machines to produce a wide range of bag sizes and formats. The ability to easily swap out the forming tube allows for rapid changeovers between different products and packaging styles.
Reduced Material Waste: The precise control over the film and the bag-making process minimizes material waste. This contributes to more sustainable and cost-effective production.
Automation and Integration: Manufacturers design VFFS machines for automation. They can seamlessly integrate into a complete packaging line, including fillers, check weighers, case packers, and palletizers. This creates a fully automated end-of-line solution.

Key Considerations When Choosing a VFFS Machine

Making the Right Choice

Selecting the right VFFS machine is a significant investment. It requires careful consideration of several factors. A thorough evaluation of your specific needs will ensure that you choose a system that not only meets your current production requirements but can also scale with your business.

Product Characteristics: The physical properties of your product—whether it is a powder, liquid, solid, or granule—will be the primary determinant of the required filling system.
Production Volume: Your required output in bags per minute will determine whether an intermittent or continuous motion machine is more appropriate. It will also indicate whether a pneumatic or servo-driven system is necessary.
Bag Size and Format: Consider the range of bag sizes and styles you need to produce. The machine must accommodate the necessary forming tubes. Additionally, it should have the flexibility for quick changeovers if you run multiple products.
Accuracy Requirements: The value of your product and industry standards will dictate the required fill accuracy. High-value products will justify the investment in more precise filling systems like combination weighers.
Budget: The initial investment cost is a major factor. Pneumatic machines offer a lower entry point. Meanwhile, servo-driven machines, though more expensive, provide higher performance and lower long-term energy costs .
Maintenance and Support: Evaluate the manufacturer’s reputation for reliability, service, and support. A complex machine requires expert maintenance. Moreover, downtime can be costly.
Future Scalability: Consider your business’s growth trajectory. A machine that can be upgraded or adapted to handle higher volumes or different products in the future may be a wiser long-term investment.

Conclusion

The Vertical Form Fill Seal machine is a marvel of packaging automation. It is a sophisticated system that seamlessly transforms a simple roll of film into a finished, market-ready product. By understanding the intricate interplay of its components—from the precise control of the film transport and tension systems to the synchronized motion of the sealing jaws and cutters—we can appreciate the engineering that drives modern packaging operations. Furthermore, the VFFS process is a testament to the power of automation to deliver speed, efficiency, and consistency at scale.
